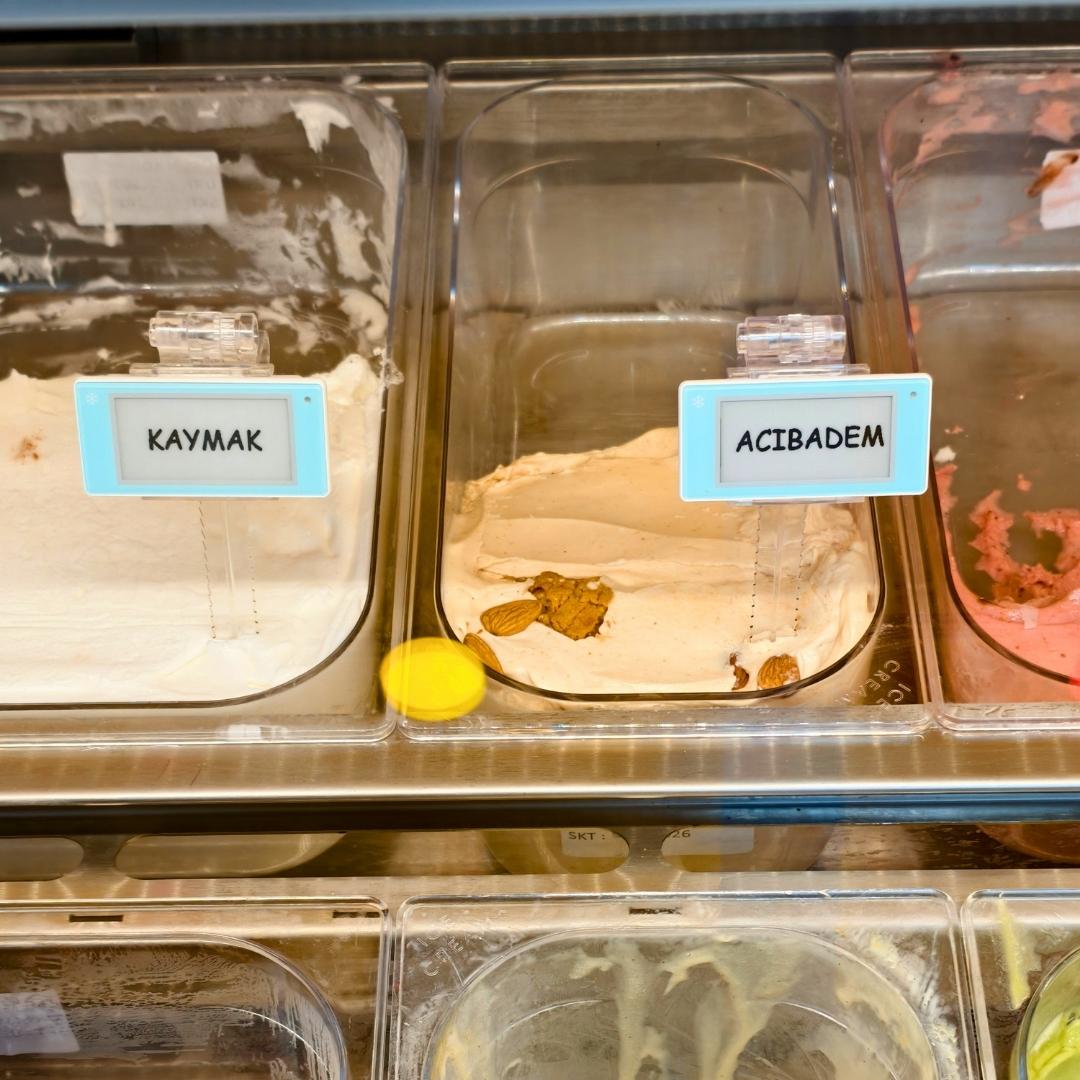

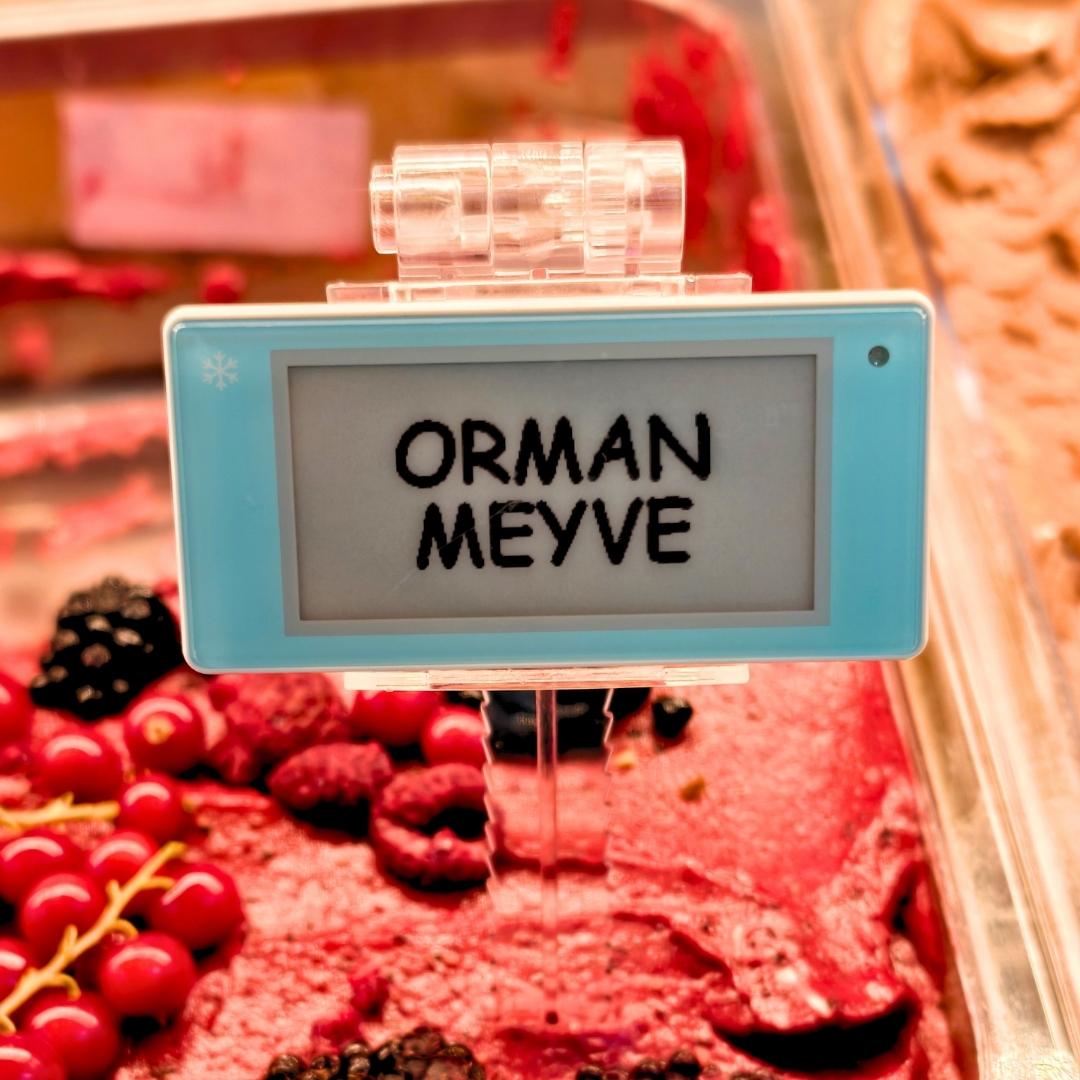

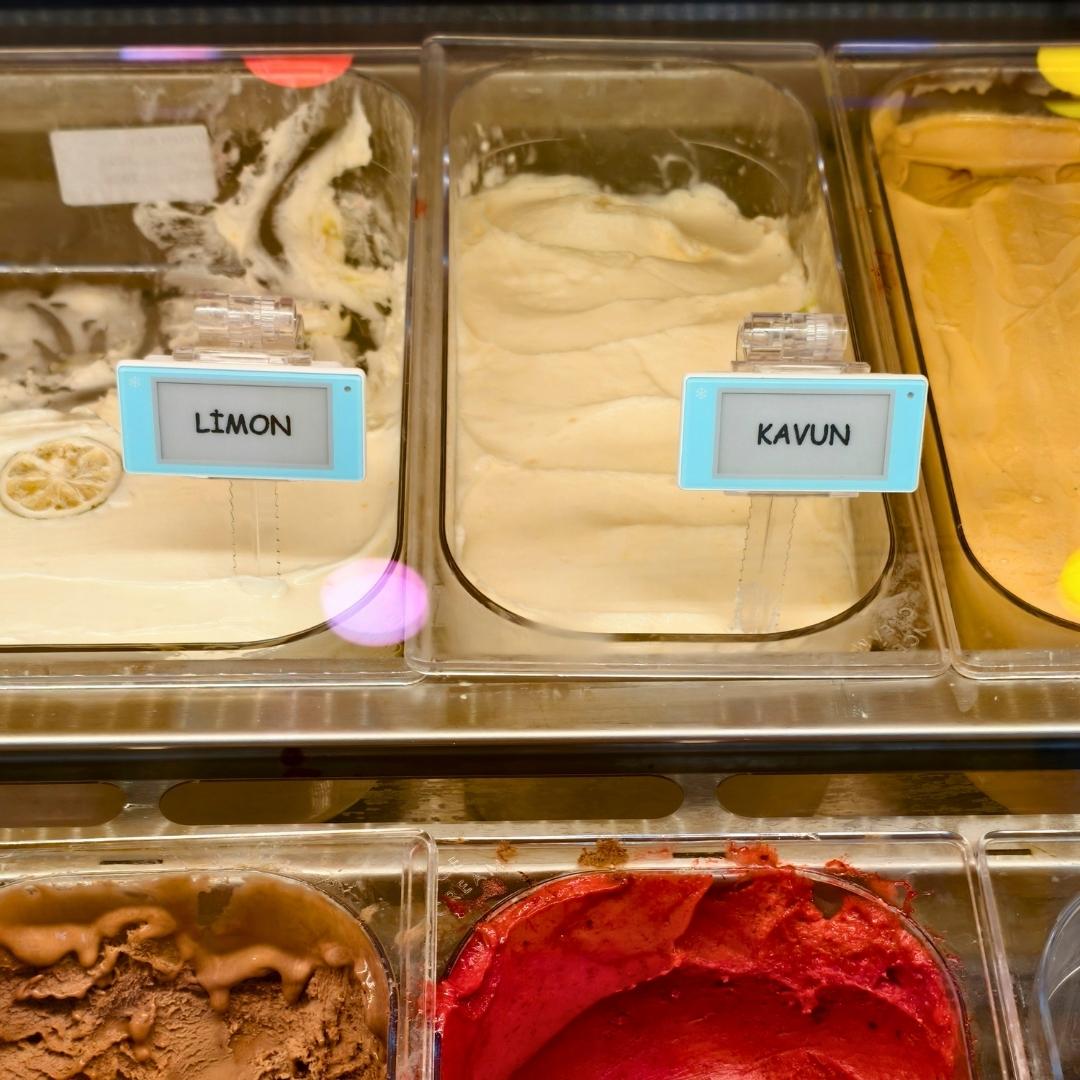

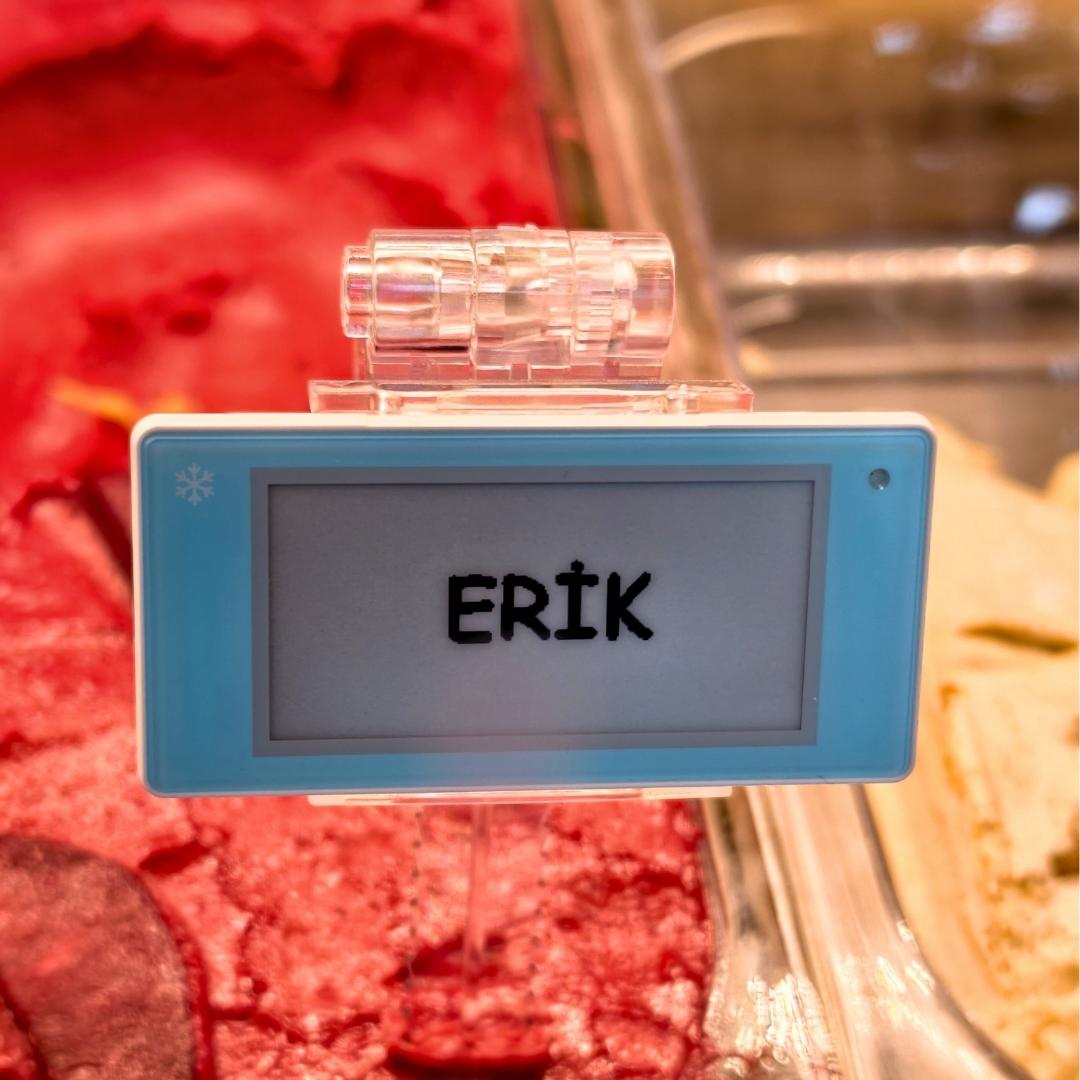

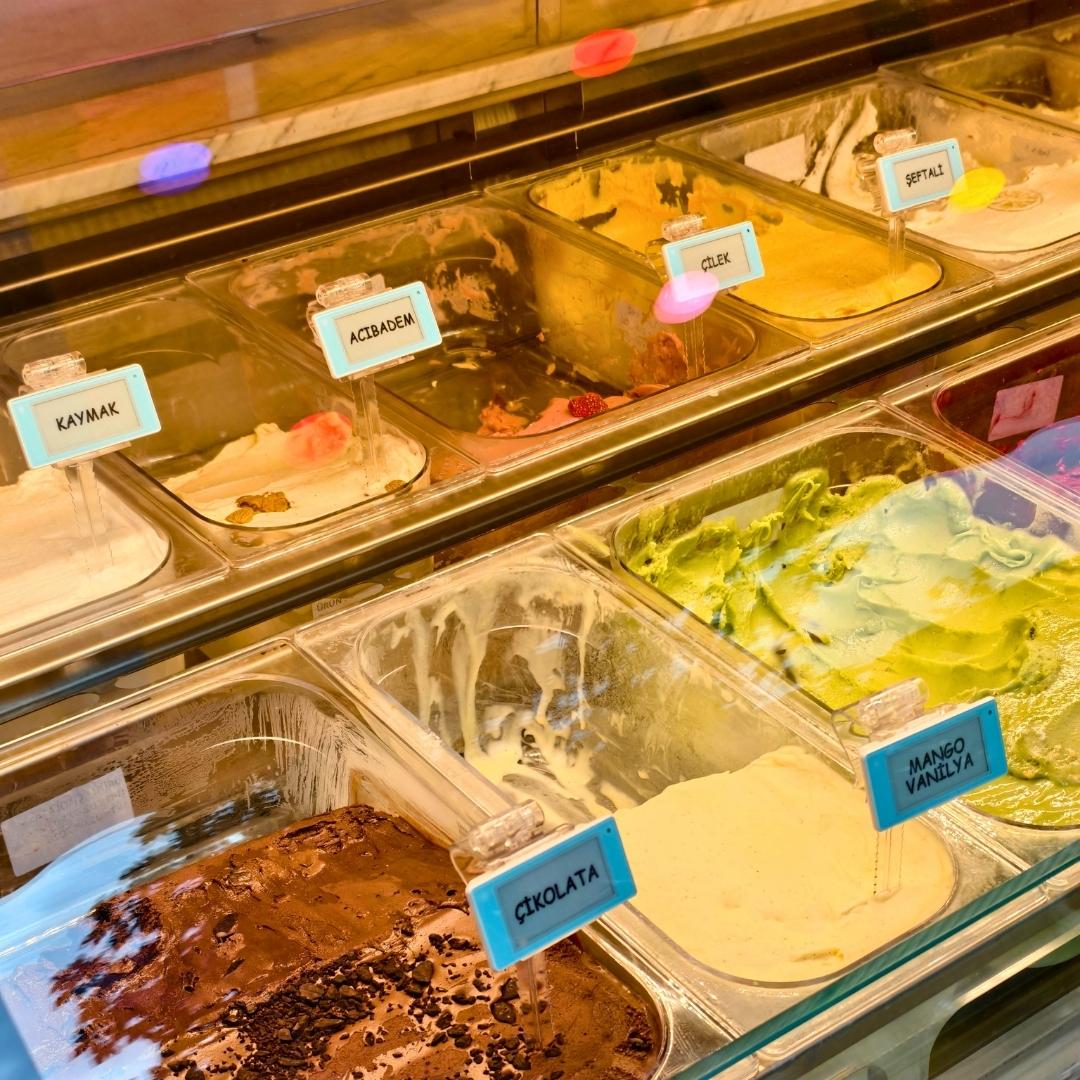

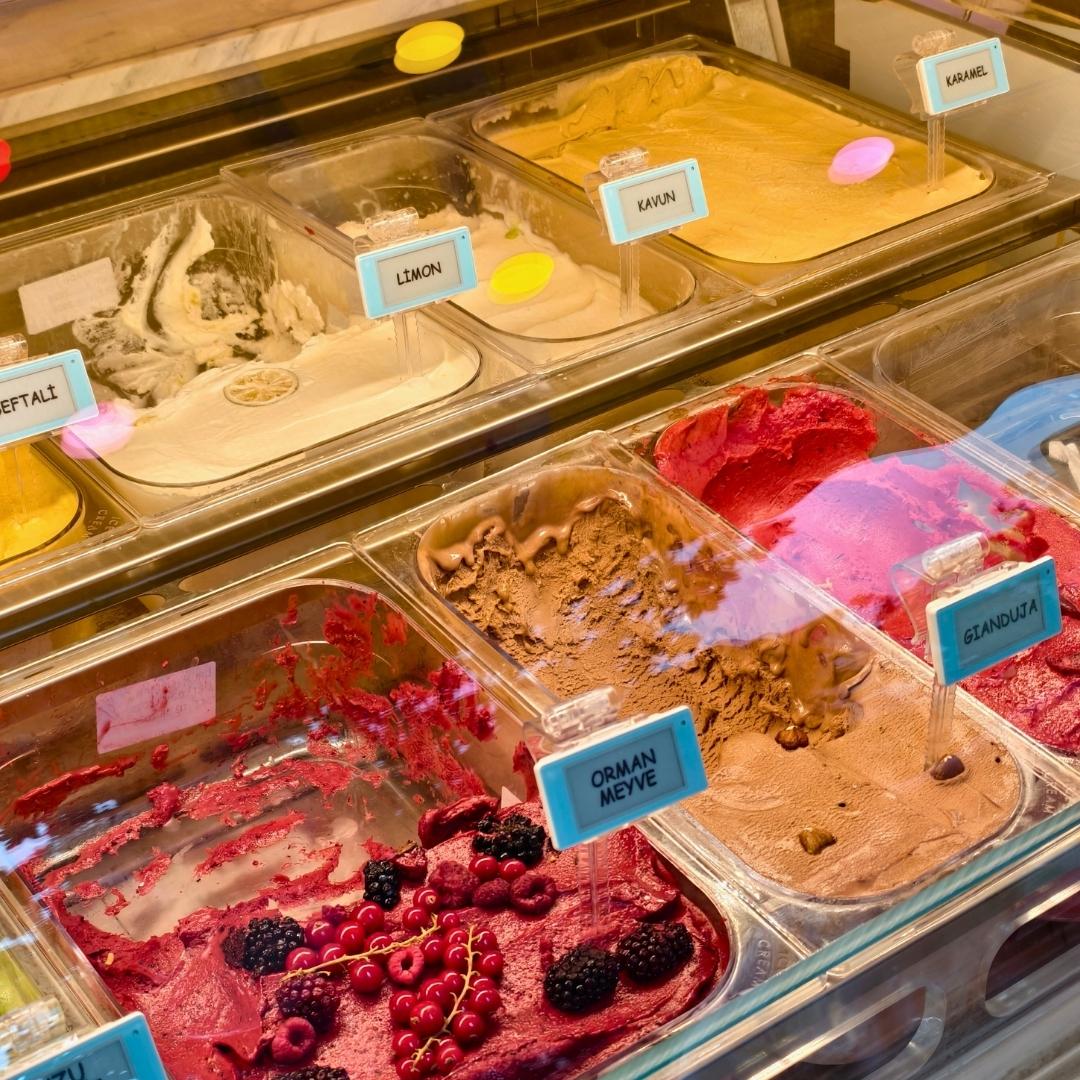

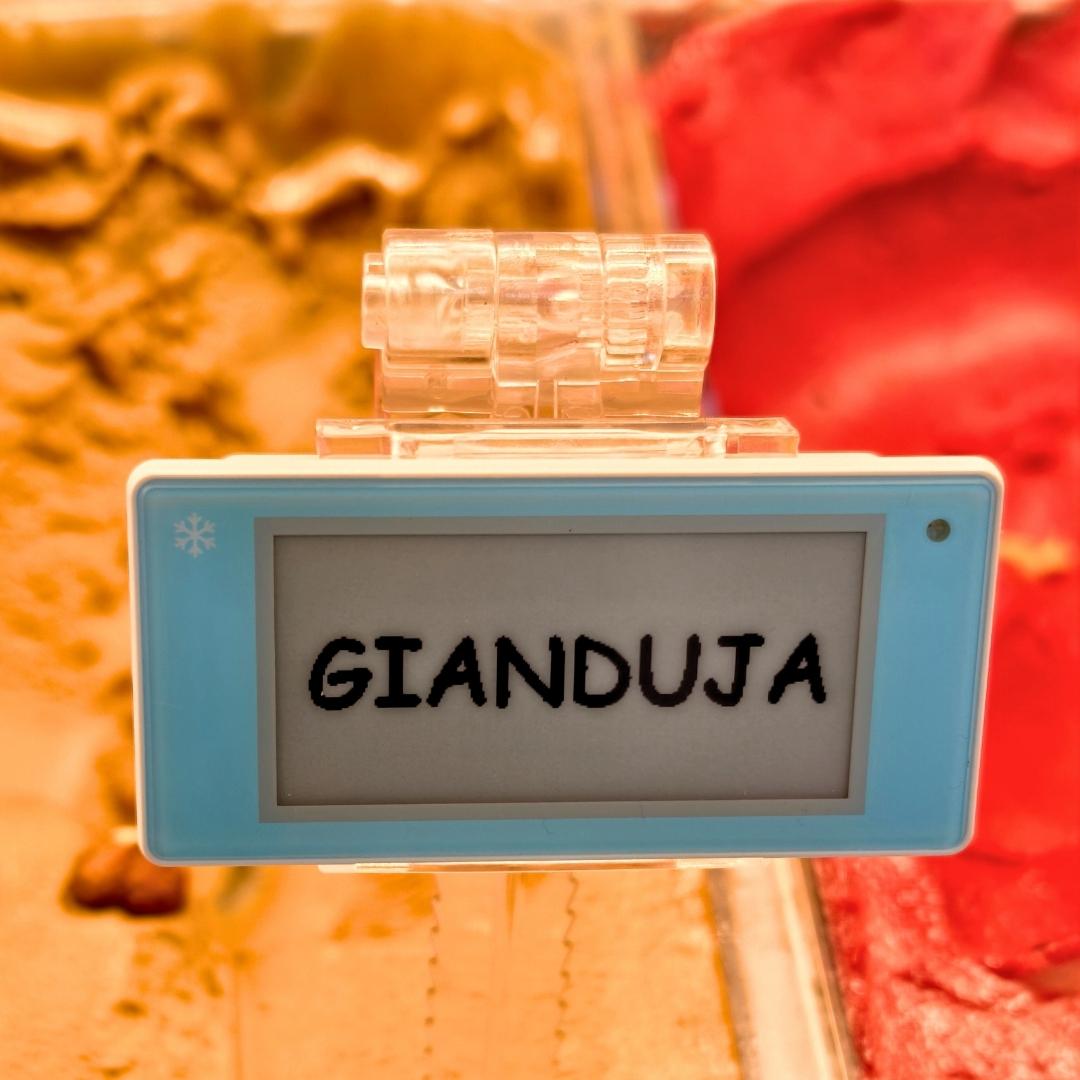

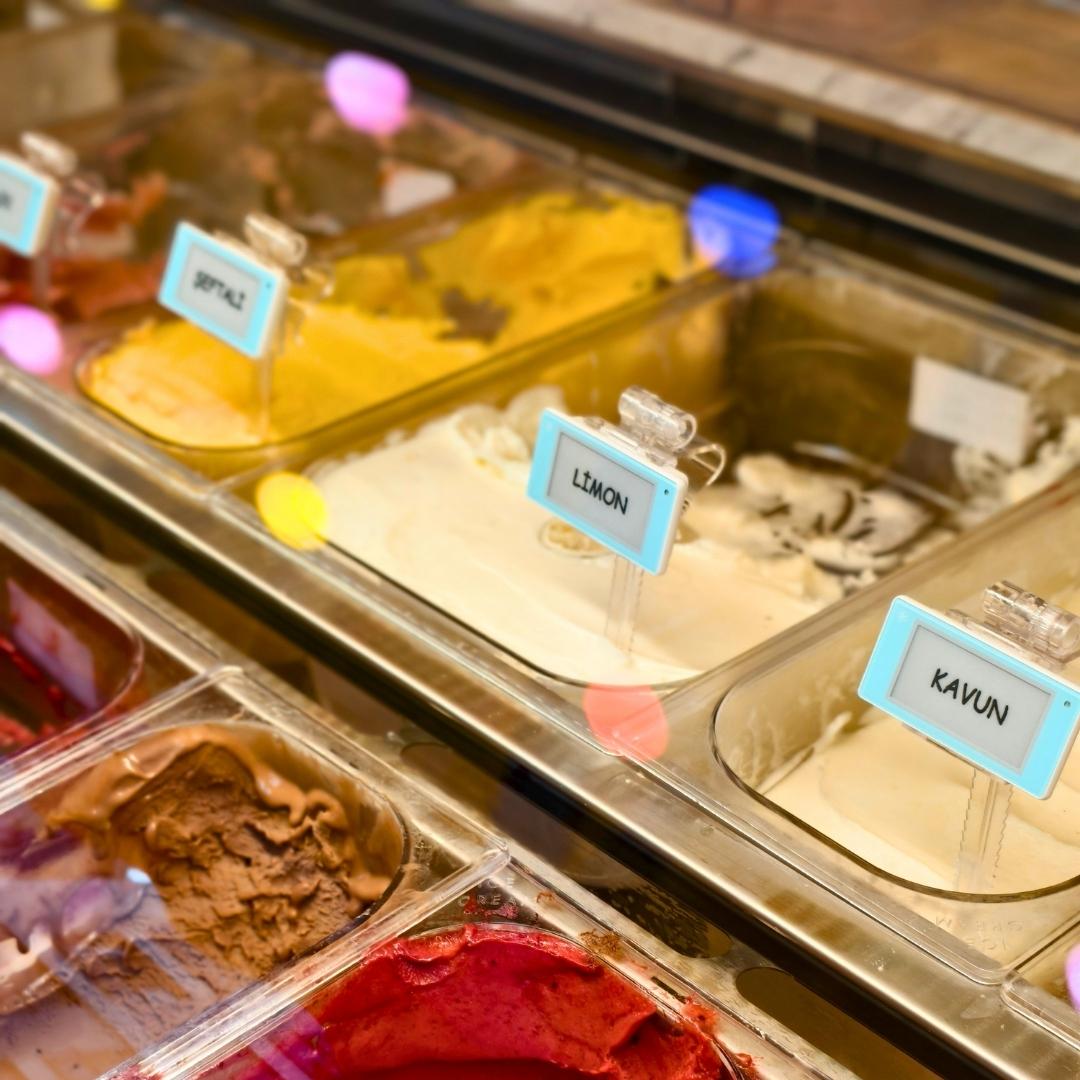

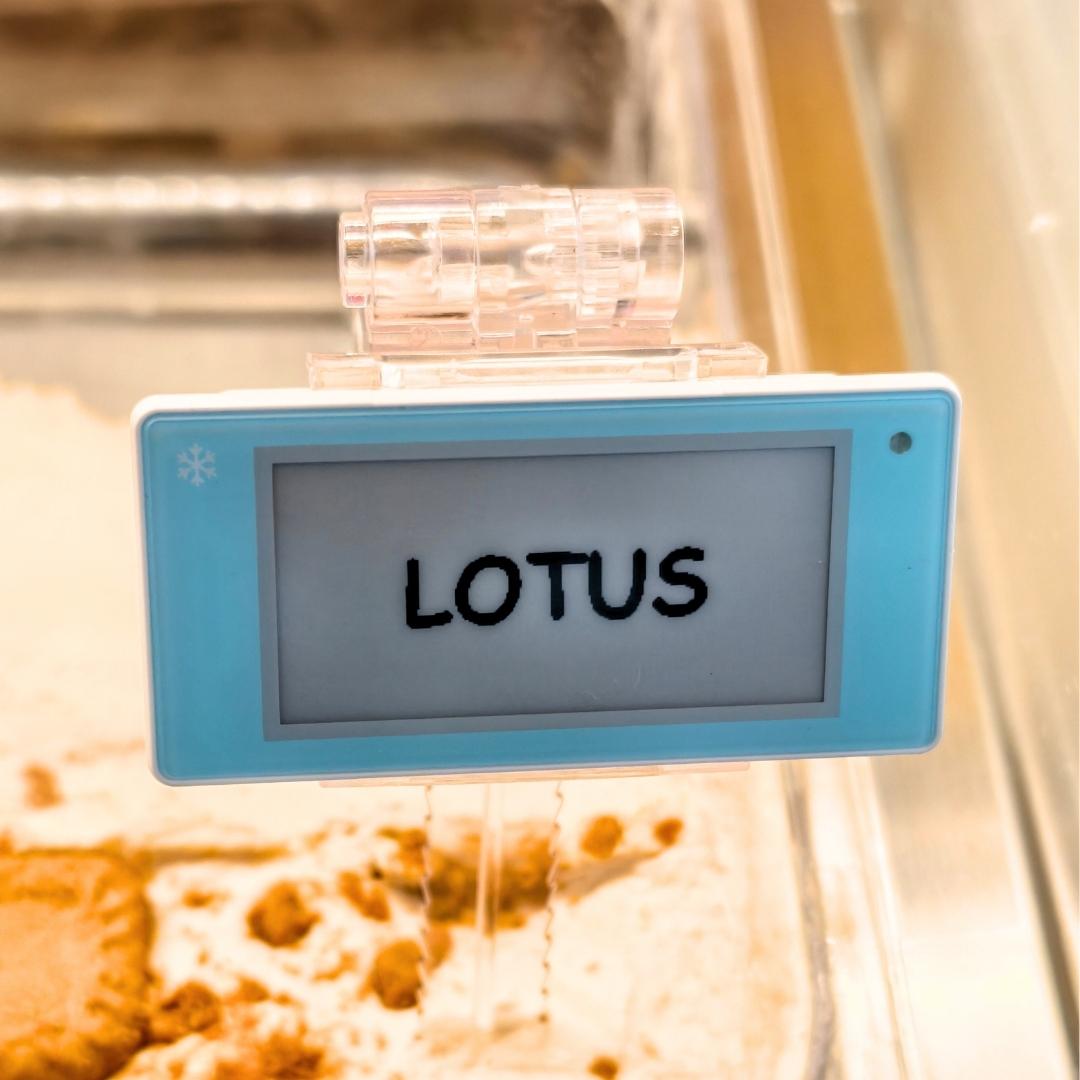

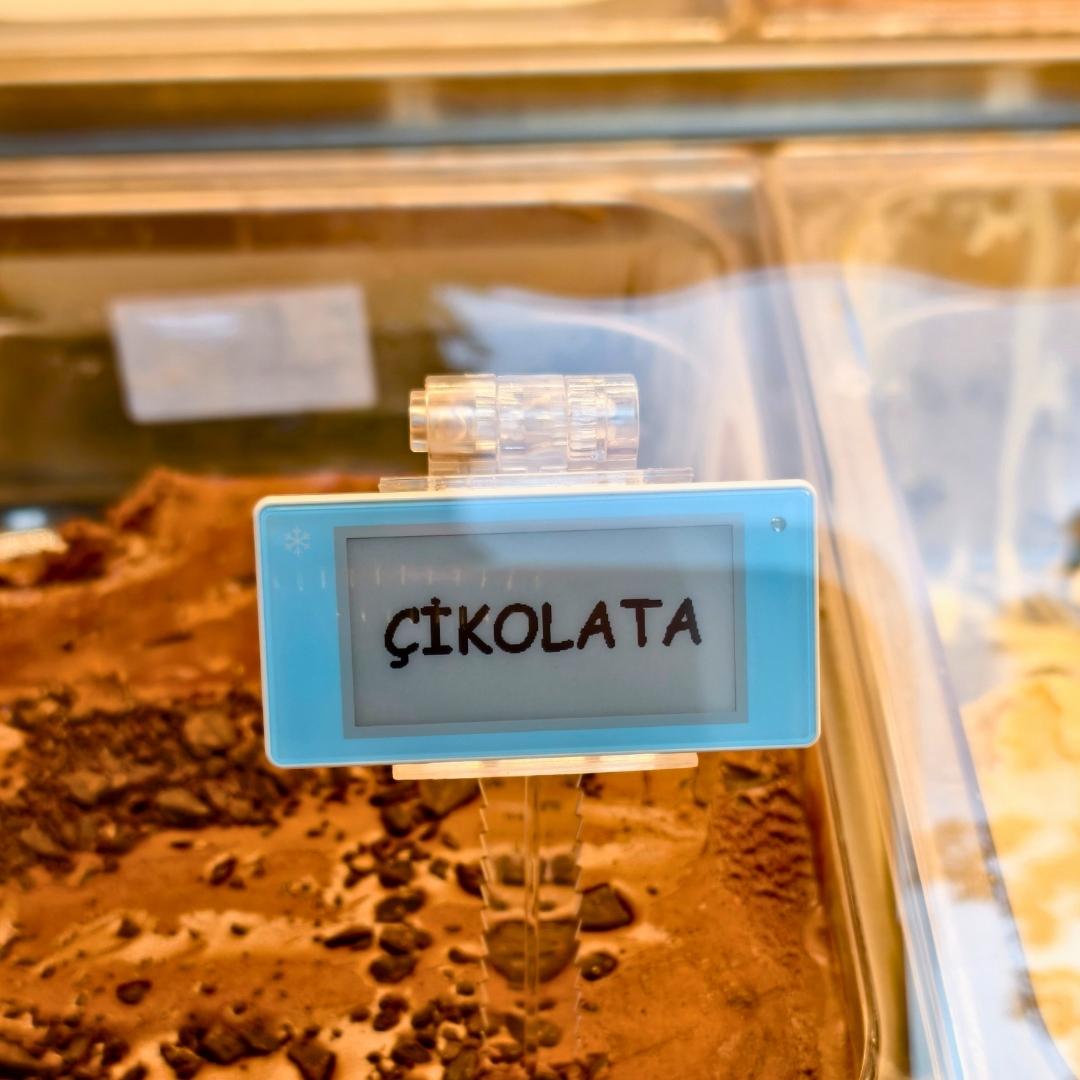

2.13" ELECTRONIC SHELF LABEL (Cold temperature)
| Stock Code | RFE03.0213 |
|---|---|
| Dimensions | 71.3 x 35.6 x 12 mm |
| Weight | 32 gr |
- It supports the transfer and display of text, images, symbols, and other content in any language.
- It can read the temperature of the environment, which can be analyzed from the connected system.
- Communication supports the sampling function, which can be read from the system.
- The remaining battery can be read simultaneously and examined from the system.
- It supports NFC communication function. [Optional]
| Display | Display Size | 2.13 inch |
|---|---|---|
| Active Area Size | 48.55 x 23.71 mm | |
| Display Resolution | 250x122 | |
| Display Colors | Black / White | |
| DPI | 130 | |
| Display Technology | Dot-matrix - E-paper Display | |
| View Angle | Near 180 Degrees | |
| Battery | Type & Quantity | CR2450 x 2 |
| Battery Life | ≥ 6 years | |
| Battery Replacement Availability | Replaceable | |
| LED | Color Amount | 3 Colors |
| Blinking Frequency | 1 sec | |
| Settings | Can Be Changed By The User | |
| Environment | Working Temperature | -25 ~15 ℃ |
| Storage Temperature | -30 ~40 ℃ | |
| Optimal Environment Humidity | 45 - 70 %RH | |
| Communication | Communication Frequency | 2.4 GHz |
| Communication Protocol | Private | |
| Communication Distance | 13 - 15 m | |
| Communication Success Ratio | 100% |
